HDPE Sheet

Polythylene PE 500 sheet commonly refered to as ultra-high-molecular-weight, UHMW, or UHMWPE, is one o our most popular engineering plastics. It provides excellent resistance to abrasion, chemicals, impact and wear, and offers very low co-eficient of friction. UHMW-PE is also non-toxic, odourless, and is highly resistant to mosture.

UHMW plastic sheet is commonly machined into wear strips, chain guides and change parts and is a popular engineering plastic in food processing and bottling operations. Specific grades of PE1000 are also used in bulk material handling applications to line chutes, hoppers and dump trucks, helping to improve product flow and prevent against ratholing and arching.

Low Coefficient of Friction

UHMW-PE is used in applications where high friction is likely, including conveyor guards, auger flights and wear strips, belt scrapers, chain guides, and idler rollers. Due to its extremely low coefficient of friction, its inherent lubricity minimizes heat-generating friction that could gradually damage steel components, ensuring smooth, quiet operation.

Self-Lubricating Formula

The high durability, low friction, and abrasion resistance of UHMW-PE make it the preferred material for numerous applications. With specialized internal lubricants replacing unnecessary greases and oils, UHMW-PE exhibits an extremely low coefficient of friction. This enhances the efficiency and productivity of many applications. The self-lubricating formula of UHMW-PE helps extend the lifespan of components, as internal lubricants ensure parts remain intact without cracking or needing replacement.

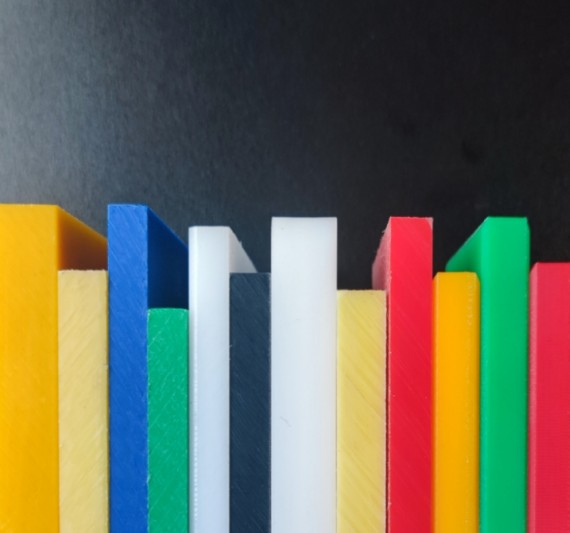

Any color is available

Color	Mould Size (mm)	Thickness (mm)
White	2800×1300	10-40
Black	4070×1100	10-80
Yellow	4430×2070	10-160
Green	5000×1500	10-110
Blue	6180×1280	10-200

Technical Data

Item	Test	Unit	Result
Density	ISO 1183	g/cm³	0.96
Compression Strength	ISO 604	MPa	40
Tensile Strength	ISO 527	MPa	25
Elongation at break	ISO 527	%	300
Notched Impact Strength	ISO 179	KJ/㎡	110
Vicat Softening Temperature	ISO 306:2004	℃	85
Rockwell Hardness	ISO 2039-2:1987	R	56
Hardness Shore-D	ISO 868	–	65

Superior Strength: YaKai Plastics UHMW-PE exhibits exceptional strength, providing reliable performance in demanding applications.

Extreme Durability: With its high molecular weight, YaKai Plastics UHMW-PE offers outstanding durability, ensuring long-lasting performance and resistance to wear and tear.

Excellent Abrasion Resistance: YaKai Plastics UHMW-PE’s abrasion resistance surpasses industry standards, making it ideal for applications exposed to high levels of friction.

Impact Resistance: Our UHMW-PE sheet provides excellent impact resistance, protecting components from damage and extending their lifespan.

Low Friction Coefficient: YaKai Plastics UHMW-PE has a low friction coefficient, resulting in reduced friction and wear, leading to enhanced efficiency and reduced energy consumption.

Self-Lubricating Properties: The self-lubricating nature of YaKai Plastics UHMW-PE reduces friction, eliminating the need for additional lubrication, and minimizing maintenance requirements.

Chemical Resistance: YaKai Plastics UHMW-PE exhibits exceptional chemical resistance, allowing it to withstand harsh substances and environments.

Easy Machinability: YaKai Plastics UHMW-PE is easily machinable, enabling precise fabrication and customization to meet specific project requirements.

Versatility: YaKai Plastics UHMW-PE has a wide range of applications, including automotive, industrial, food processing, and material handling, thanks to its versatility and adaptability.

Customization Options: YaKai Plastics UHMW-PE is available in various sizes, thicknesses, and forms, offering customization options to suit specific project needs.

Please send us a message if you have any questions about our products or have specific needs prior to placing your order.
